costruire una piattaforma 3dof

[Vigezzobonsai]

vorrei costruire una piattaforma 3dof ,con motore ECMA-C20604ES (400W)
Serie a bassa inerzia Potenza: 400WCoppia Nominale: 1,27NmCoppia Massima: 3,82NmVelocità di rotazione nominale: 3000 rpmVelocità di rotazione massima,(http://shop.twintec.it/index.php?main_p ... x&cPath=96)

io non sò nulla di elettronica ho bisogno di molto aiuto. 2 motori per movimento/ 1 motore per imbardata,

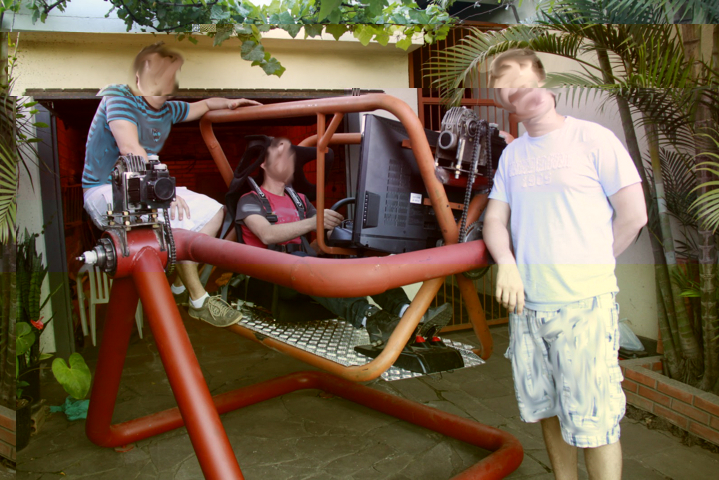

vorrei costruire una cosa simile.

[Vigezzobonsai]

I would like to build a platform 3DOF, 2 motors for movement / 1 motor for yaw, with brushless motor
ECMA-C20604ES (400W)
Series Low Inertia Power: Nominal 400WCoppia:
NmCoppia 1.27 High: 3.82 NmVelocità Rotation nominal:
3000 rpmVelocità Rotation Maximum,
  I do not know anything about electronics I Need Much Help.
  One thing I would like to build similar

can anyone help me?

[Turn]

Do you have any more information about the rig in that picture (website link)? I'd like to know what motor and power supply/control they're using. Details, please, if you have them.

[motiondave]

BIG motors, BIG power supplies, BIG expense.....

[Vigezzobonsai]

I think you are (servomotor)

[Vigezzobonsai]

I think it can also be used (stepper motor),

http://www.youtube.com/watch?v=kjPaKMw5 ... creen&NR=1


http://www.youtube.com/watch?v=LIwxMn8f1lA

[CraCk]

This simulator is used The motors are servo motors (1,5kw @ 2500 RPM !), with a gear reduction of about 90:1. The electronics are the servo drivers and a msp430 microcontroller.

http://www.*/forum/360-sim ... lit=Motion

[Turn]

Thanks, crack. Yes, I found the original announcement post here:

http://www.*.de/forum/presenting-free-roll-free-pitch-simulator-t2786.html

user gsffair stated they used an 1.5 kW AC servo motor from here: http://hzmgdj.en.alibaba.com/

I think their project may have turned into "BS Motion" after that.

[Vigezzobonsai]

SERVOMOTORE:
this is good?
130JASM152MK ServoMotor 1,5 kw wtih 220V 23 1 N m peak holding toque 2500rpm max speed

[Vigezzobonsai]

AC_Servo_Motor_HBS86_24_75V_and_8_2_A_Peak_closed_loop_and_no_tuning_no_need_high_torque_margin_fast_response_no_delay

then we also need this, right?
