Hello everyone, I want to present my project, but first I want to make the acknowledgments, thanks to this website from which I learned a lot and thanks to the developers of the software x-sim thanks to which my project could take shape, I also thank the 'friend caiubbo84 for his valuable advice, I decided to share my work in the hope that it will be useful to those who want to challenge themselves in a similar project, the everything' was made on a budget and starting from a base made from a telephone style Zalem already 'exists, I apologize for my bad English, google translator is not' good the project initially planned to set up a station with style Frex movement of the seat only, as I have tried to insert in the movement also pedals and steering wheel, I finally found a satisfactory compromise for me that is to be connected to the steering wheel while moving the pedals remain fixed, this also to avoid overworking the engine wipers beginning to illustrate the project indicating patterns used, materials etc.
this and 'the position already' existing from which they are party

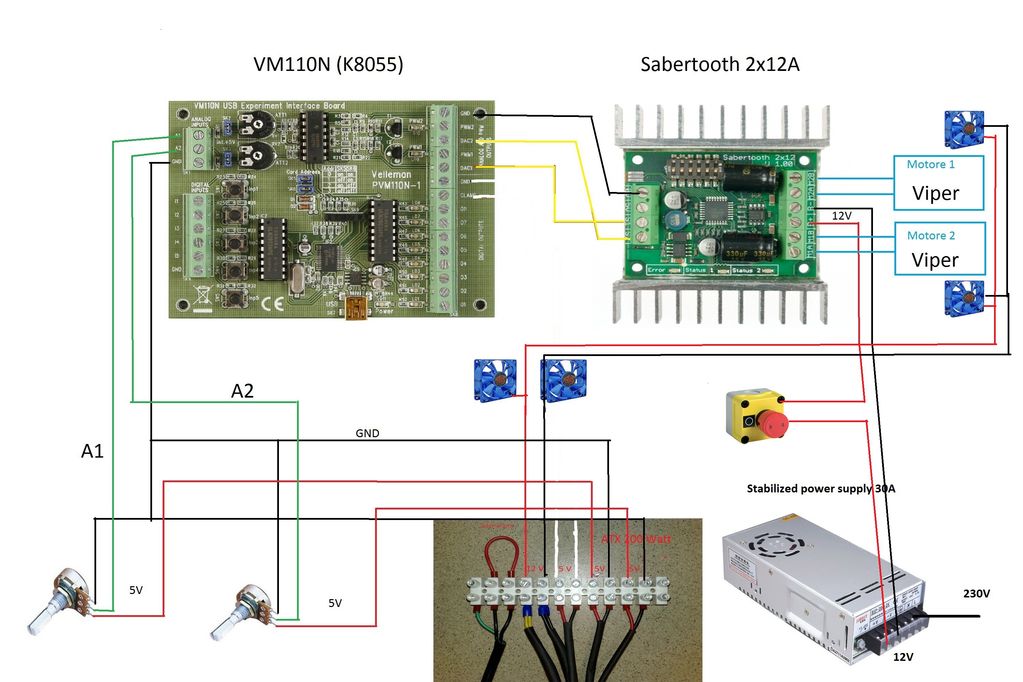

connections

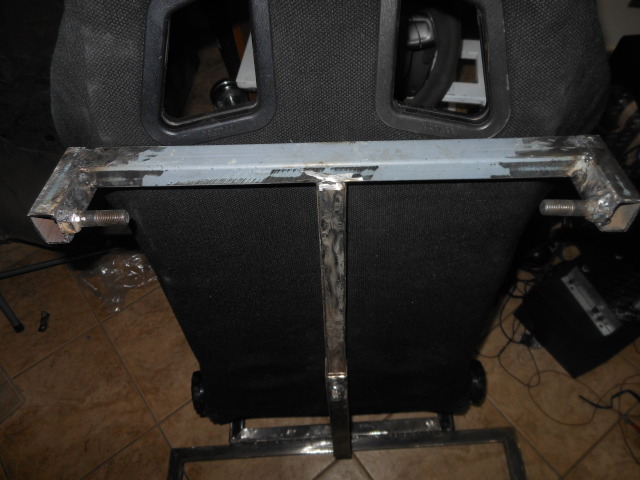

base seat
materials
iron for 2 30x20 bases, so as to make more 'weight construction 2 threaded rods 12 m n4 rod ends m12 1 stabilized power supply 30a sabertooth 2x 12 + velleman K8055 2 front wiper motors fiat panda old type + steering column universal joint potentiometers 10k pc power supply atx

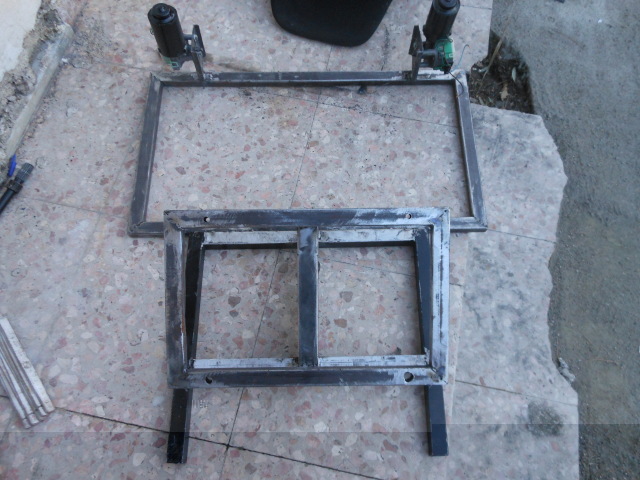

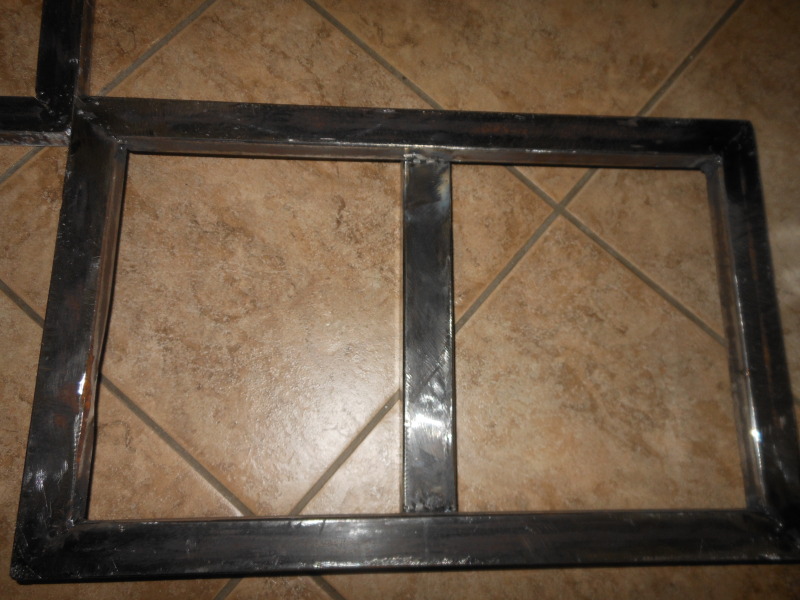

seat base

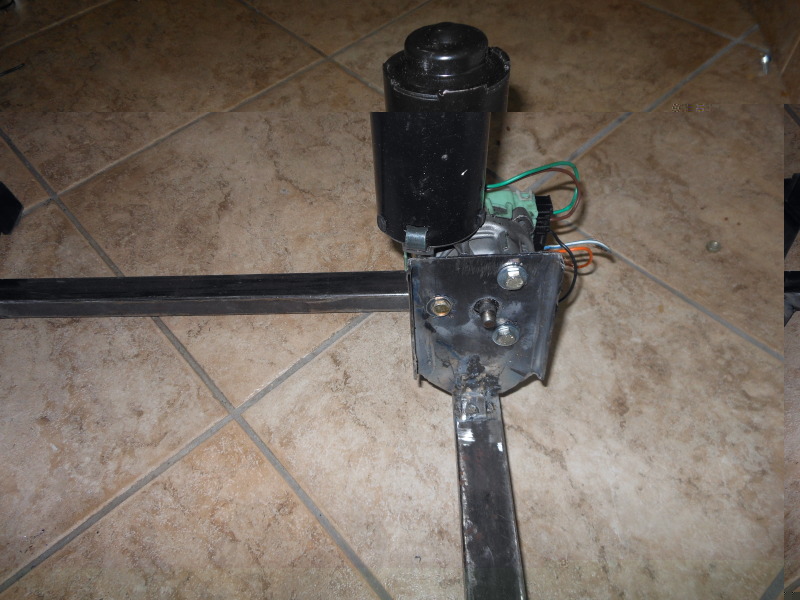

motors
saber+k8055
teste a snodo m12
photo of the work
the station has many adjustments in height and in length this and 'the provisional result, the last upgrade took 3 monitors and change the movement
soon will insert 'new video with the latest upgrade
game :rfactor2 track: lime rock car :renault megane /formula renault
I painted the structure fixed the sequential gearbox adjusted the profiles x-sim to have greater acceleration / braking and vertical force installed home t. 2.1
still in test phase profiles x-sim and structure with the latest changes, I'm 'testing the pedal connected to the movement, but still does not satisfy me' cause the movement is "muted, I'll see 'if I can' always something to change this if it is convenient to for simulation purposes
