my simulator

[nave]

Hey guys this is the simulator i am working on. I need to know what to buy to get this thing going. I am only going to have one wiper motor and i want it to lean the car when i go into the turns,it is being made for a nascar mod for rfactor. I have a 12 volt power supply, i just need to know what else to buy. I also have a uno board and a h-bridge but i just can't figer out how to get it all hook up. I would like to know what is the best thing to buy that is simple to get going. Thanks for any help

[RacingMat]

Hi Nave!
You have most of essential parts!
Have a look on my tutorial: I hope you will get some answers
Mat

[dennisnojack]

Nice

BTS/BTN Bridge.
Please give feedback!

[nave]

Hi Nave!
You have most of essential parts!
Have a look on my tutorial: I hope you will get some answers
Mat

I have looked at yours my problem is that i am i still can't figer a way to wire it. I know where the 5 volt and the ground goes,but i am not sure wher i need to wire my pot up and i don't know what should be in1,in2,en,ero1,ero2 from my uno board to my bridge. I also need to make sure i got the right kind of pot. I am going to post some pictures and thanks for any help you are any one else can give me

[nave]

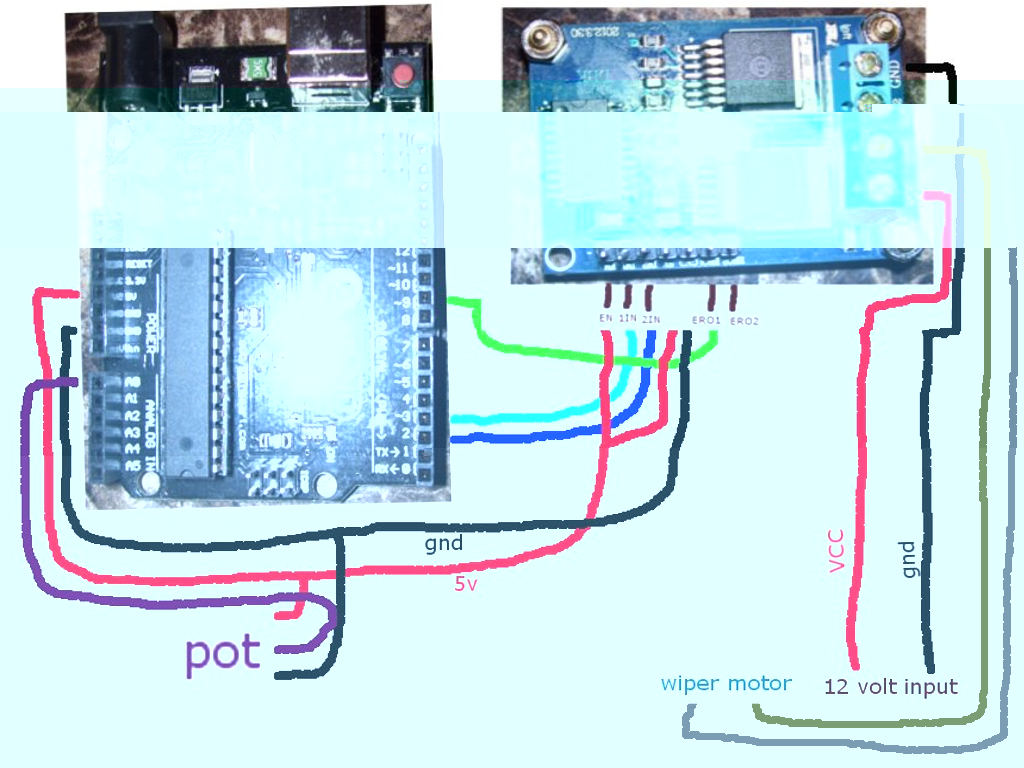

This is the way i think it should be but i don't know,can some one tell me what's right and wrong?

[RacingMat]

Hi Nave,

can you give the specs of your Hbridge and a link to try understanding what it requires?

[sirnoname]

Enable (En) of H-Bridge is mostly used has PWM input.
1in and 2in should be direction pins.
Error outputs should be not connected (or the manual tells you other).
Normally there must be a power 5V and GND connection for the left electronic. This get tied to the arduino.
Send teh datasheet here.

Genereally: this direct connection do work for less power and test. Later in the simulator you must use optocuppler.

[nave]

Hi Nave,

can you give the specs of your Hbridge and a link to try understanding what it requires?

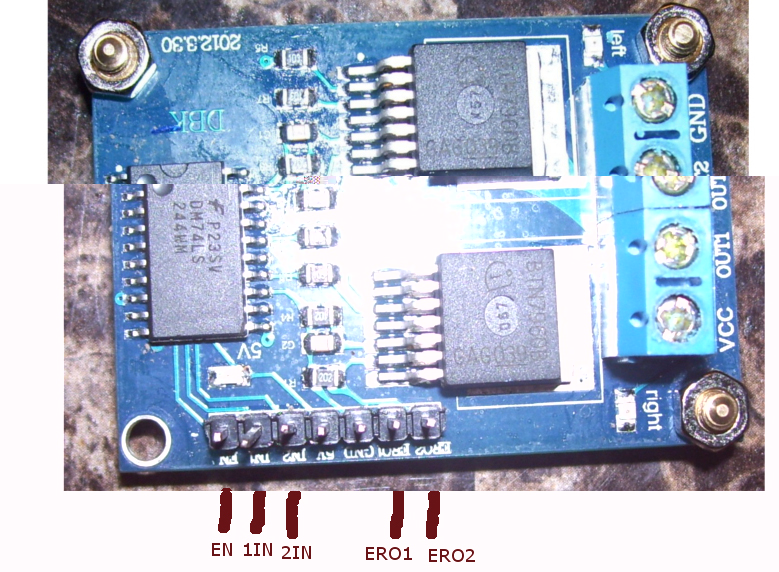

I have a 43A BTS7960B DC MOTOR DRIVER Module H-Bridge

[nave]

Enable (En) of H-Bridge is mostly used has PWM input.
1in and 2in should be direction pins.
Error outputs should be not connected (or the manual tells you other).
Normally there must be a power 5V and GND connection for the left electronic. This get tied to the arduino.
Send teh datasheet here.

Genereally: this direct connection do work for less power and test. Later in the simulator you must use optocuppler.

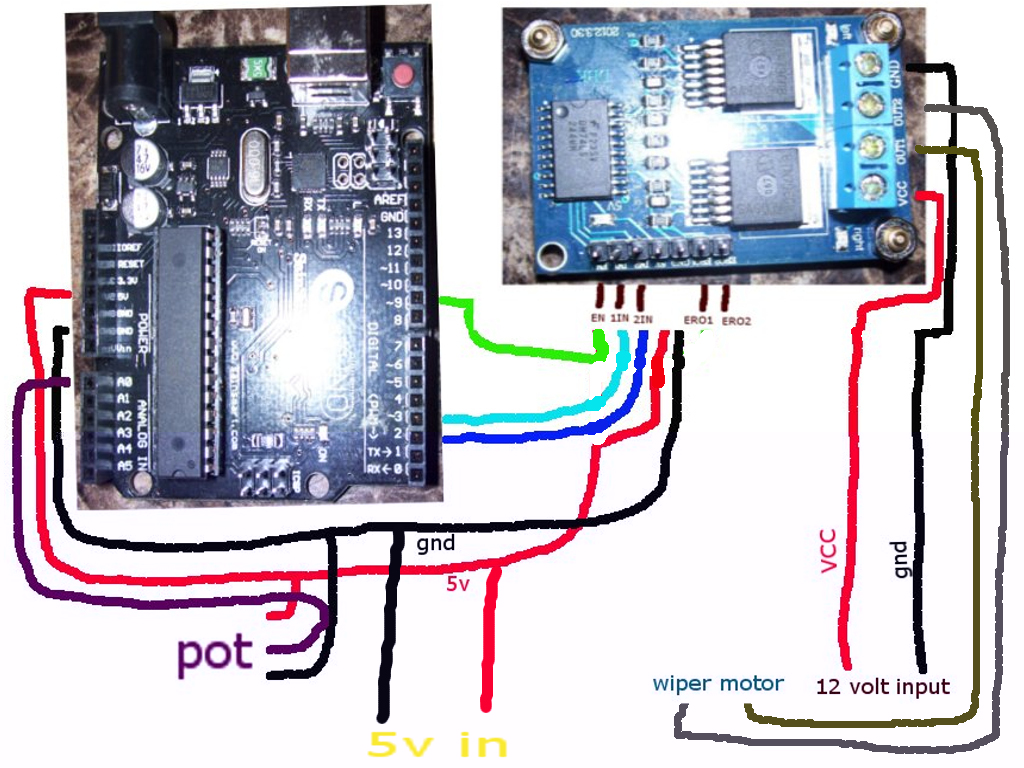

Is this what you are talking about? I would also like to thank every body for there help. I have wired it up this way but i have one problem both of my wiper motor wires have 12 volts on them at the same time.

[RacingMat]

Hi Nave,

You can get some help but please ease the work! Give the link, upload the file...
If not, we have to spend time googling instead of you
