DIY - G-Seat TK simulator

[TomKlash]

Hi,

I present my DIY G-Seat simulator.

It based on G-Seat system. The purpose is to generate G-force on pilote with almost no movement.
The bucket seat is slice in 3 parts. The backrest is a the only fixed part, seat and the top of the seat (behind the shoulder) are mobile parts.

Bottom of seat transcribe longitudinal G-force, top of the seat combine longitudinal/lateral G-force.

The system is actuated by 3 DC motors of 150 W. The electronic part is composed by Aduino Uno with 3 H-bridges (MotoMonsterShield).


[TomKlash]

To begin a CAD study

SIMU COMPLET_02.jpg (114.25 KiB) Viewed 35075 times

SIMU COMPLET_04.jpg (115.85 KiB) Viewed 35075 times

[TomKlash]

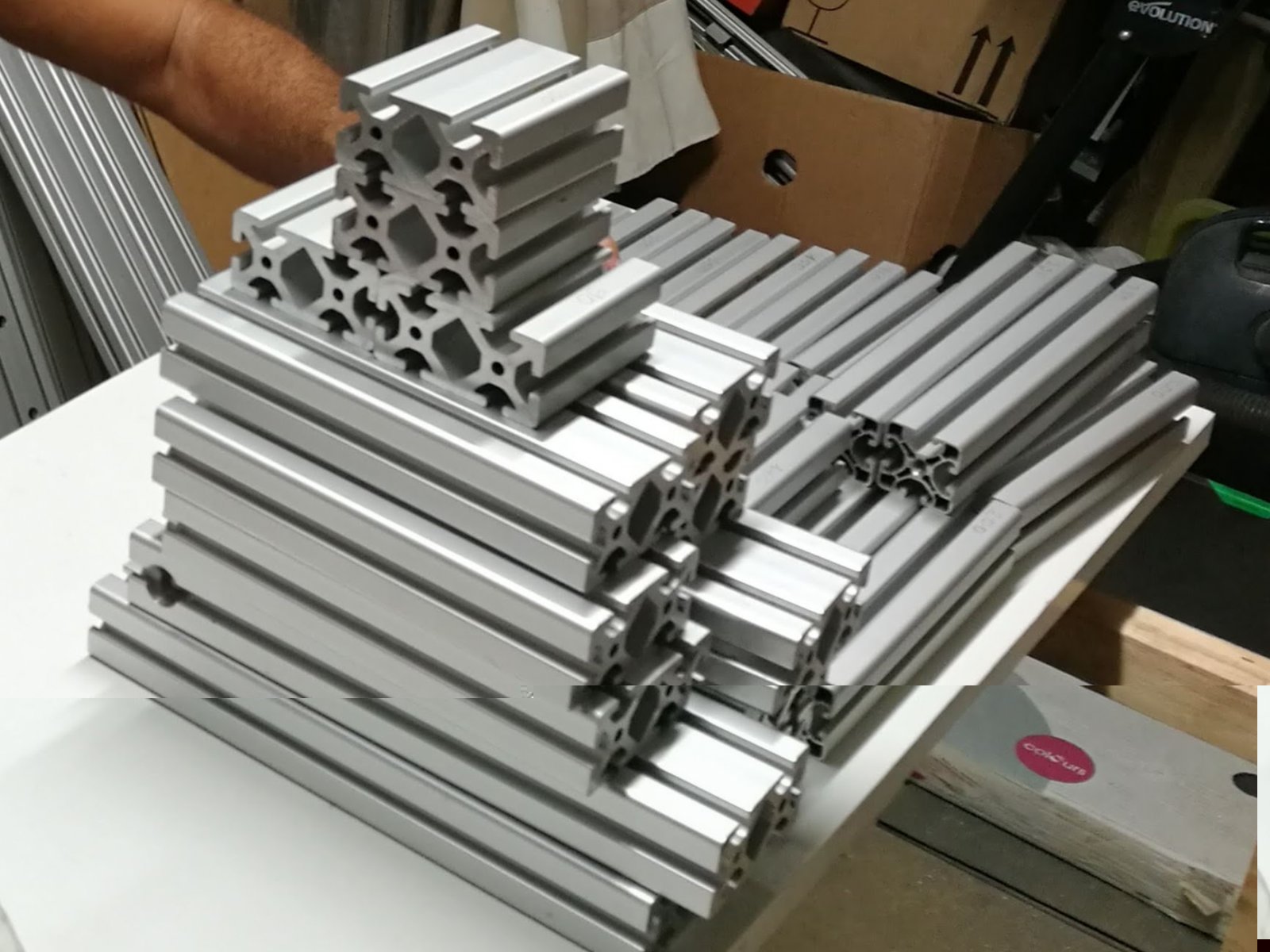

Fabrication starting...

IMG_20170911_132800 (1).jpg (159.59 KiB) Viewed 35075 times

Capture d’écran 2020-05-11 à 18.06.16 (1).png (192.32 KiB) Viewed 35075 times

[TomKlash]

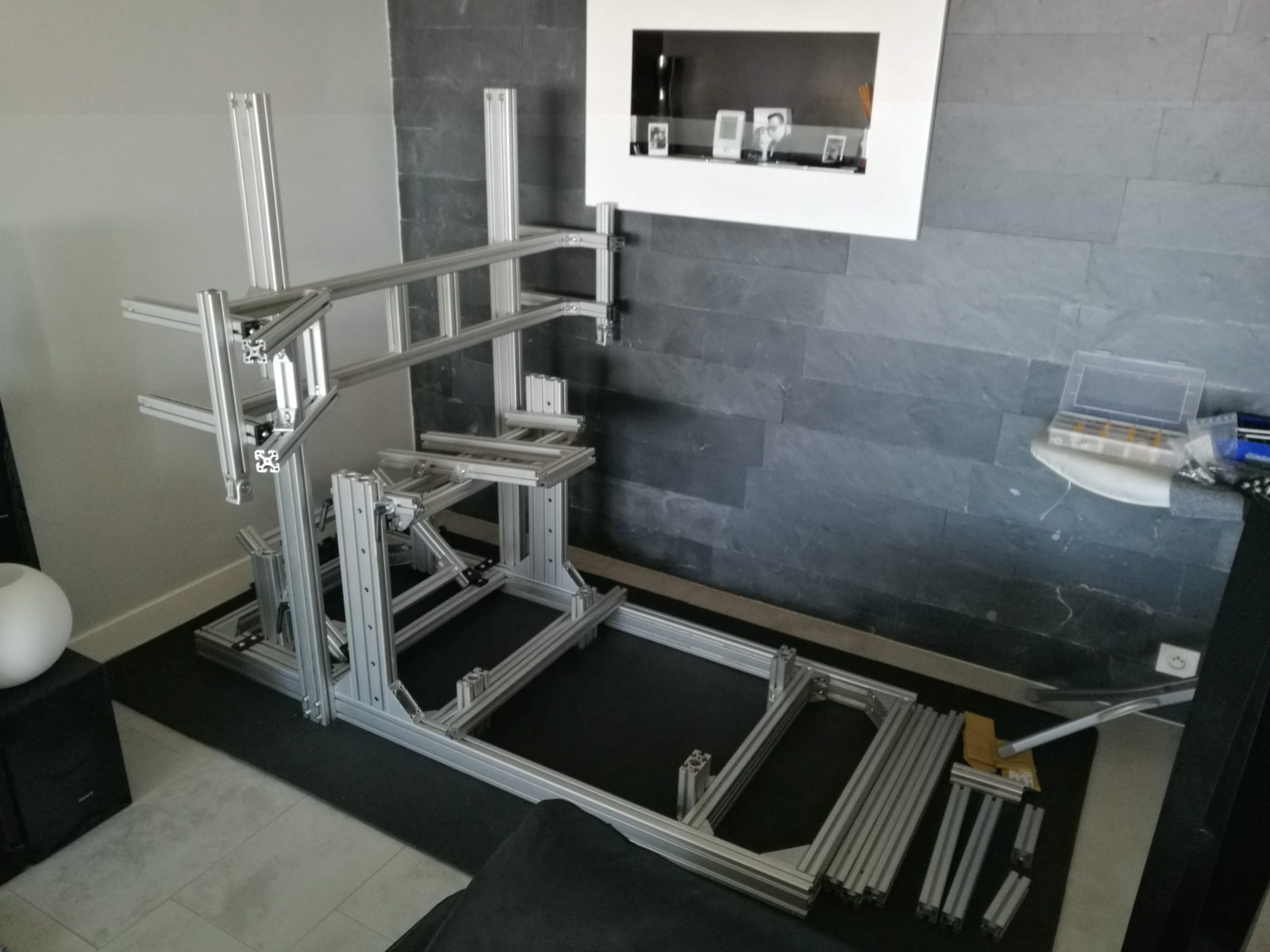

The beginning of mounting...





[sirnoname]

You can import your simulator into unity and run a bone simulation if you have such cad stuff.

[TomKlash]

You can import your simulator into unity and run a bone simulation if you have such cad stuff.

What do you mean by "run a bone simulation" ? Mechanical analysis (strength of materials) ?
