Motion simulator 2DOF (wiper motor)

[stephaned61]

hello,
this is my homemade cockpit.
The motion simulator is constructed on the basis of the combination Velleman VM110(K8055) + Sabertooth 2x25A + wiper motor.

Here is a video presentation and demonstration of my cockpit (in French)



A tutorial on building my simulator is visible on my forum: http://vos-playseat-stephaned61.xooit.fr/t7-Creation-d-un-simulateur-automobile-2DOF-avec-des-moteurs-d-essuie-glace.htm

[motiondave]

nice job there, well done.
Just a suggestion, if you ever plan to get bigger motors, i suggest these http://www.motiondynamics.com.au/worm-d ... -180w.html , they will make you really stand up and notice.
But otherwise said, great job.

[vicpopo]

Salut,

Nice to see you in this forum.I 'm happy seeing the french team here !!!
As I often said in this forum your job had a lot inspired me for building simulator.
Many Thanks and your simulator is always awesome!!
Best Regards

[stephaned61]

nice job there, well done.
Just a suggestion, if you ever plan to get bigger motors, i suggest these http://www.motiondynamics.com.au/worm-d ... -180w.html , they will make you really stand up and notice.
But otherwise said, great job.

Your engines seem to be interresting. They are equipped with potentiometers?

Salut,

Nice to see you in this forum.I 'm happy seeing the french team here !!!
As I often said in this forum your job had a lot inspired me for building simulator.
Many Thanks and your simulator is always awesome!!
Best Regards

Thanks

[motiondave]

I had to put pots on the motor via a lever system

something like this.
I use JRKS though.
Now thanks to some left over gears off a winch motor I use multiturns


Floriske runs a similar motor on his sim. They are fast and powerful.

As said, just a suggestion....

[stephaned61]

Ok!

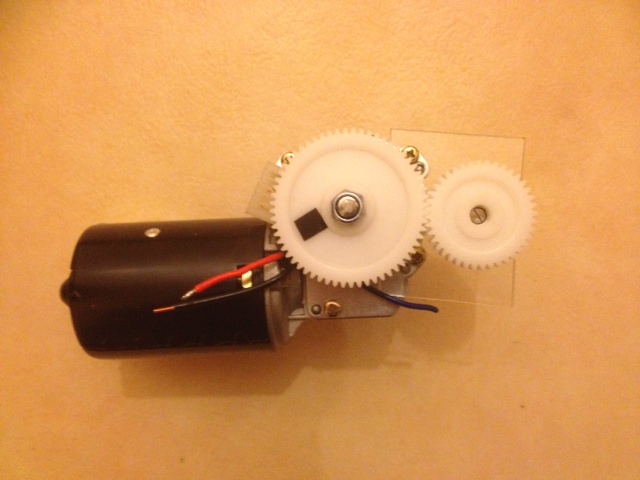

My potentiometers are installed in this way:

[zecaEU01]

Good Afternoon stephaned61.
You installed the gears higher and lower motor potentiometer in which the difference in the ratio of 1:1.
zeca

Ok!

My potentiometers are installed in this way:

[Poonaam]

Hi!
Excellent share!



Thank you!
